Online double-conversion single-phase UPS

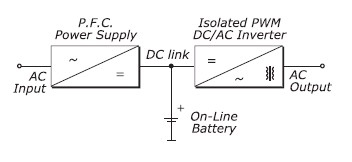

The MS Series is a single-phase input/output UPS with a power range of 3.6kVA to 10kVA. It is a classic online double-conversion system with an inverter isolation transformers and static switch. The units include a microcontroller with sophisticated power analysis software.

Features

• Microprocessor control
• Double conversion and double isolation
• Output isolation transformer
• Static switch
• Volt Frequency Independent (VFI)
• DC soft-start
• Rectifier/charger for extended backup time
• Large LCD and GUI
• Logs up to 256 events for detailed information about UPS anomaly history
• Automatic and manual battery test
• RS232 interface for smart software and SNMP management

Options

• Input isolation transformer
• Bypass isolation transformer
• Maintenance bypass
• Extended battery backup
• GMaCi management card
• WING wireless management card
• PSM-AC Universal: single UPS management software
• 19" cabinet
